Ophthalmic Exam Chair Series
Motorized Patient Positioning System
The Ophthalmic Exam Chair is the core component of the examination lane, providing motorized, stable, and comfortable patient positioning essential for accurate subjective refraction and comprehensive ocular diagnostics worldwide.
Model-Specific Features & Specifications
The following table details the key technical specifications and features for the Ophthalmic Exam Chair models shown:
| Model | Lifting Range / Elevation | Key Features & Specifications | Dimensions & Weight |
|---|---|---|---|

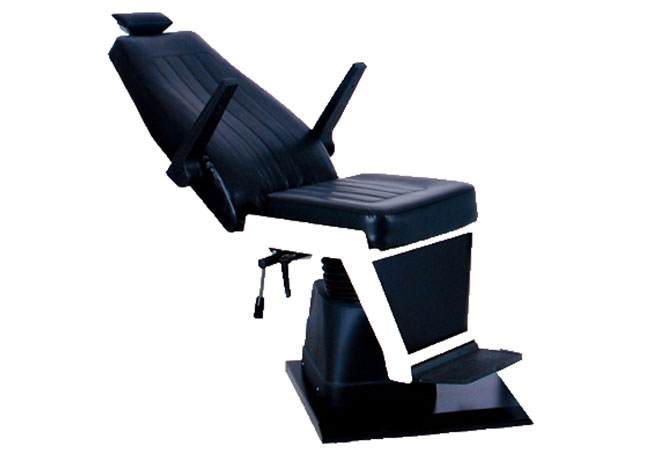

| EC-100 | Lifting height for chair: 460–600 mm Lifting height for pillow: **≤ 150 mm** |
1. Angle of rotation for chair: ± 60°. 2. Loading for chair: 150 kg. 3. Backrest obliquity: 90°–135°. 4. Input voltage: 220 V ± 10%. 5. Engine power: 140 W. 6. Fuse: 5 A, 250 V. 7. Material: PVC. |
Figure size: 700 mm × 900 mm × 1400 mm. Weight: 60 kg. |

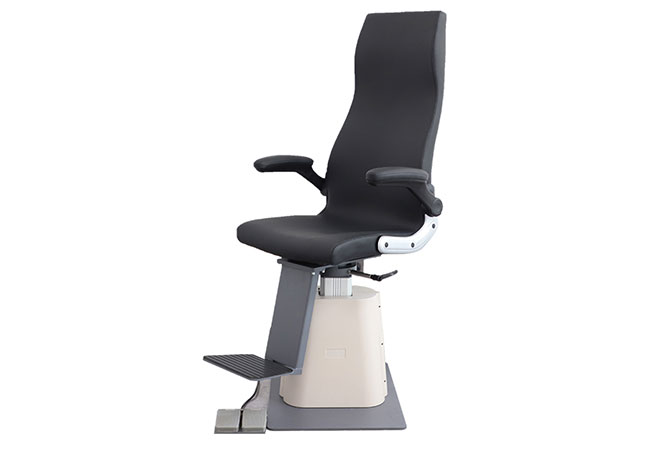

| EC-300 | Up and down moving range: 568–708 mm |
1. Chair rotation angle: 0°–270°. 2. Backrest adjustment angle: 80°–180°. 3. Headrest is adjustable in a semicircle area of 250 mm radius. 4. Chair max load: 150 kg (likely a typo for 200 kg or 150 kg). 5. Material: Leather. |
Figure size: 1084 mm × 1316 mm × 1663 mm. |

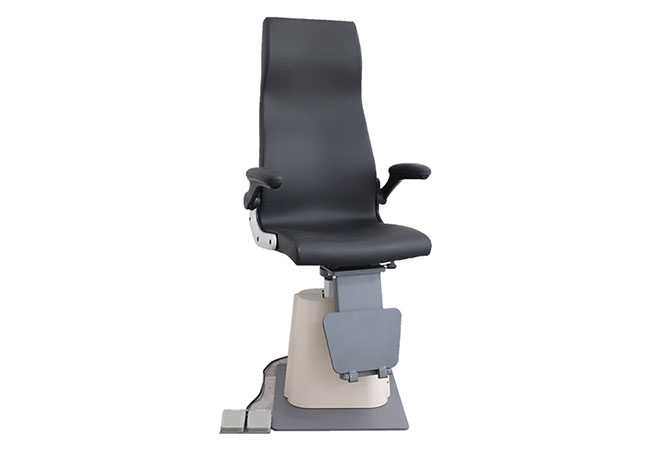

| HD-RC | Elevation range: 580 mm – 730 mm |
1. Rotation: 45 degrees to the left and right. 2. GW (Gross Weight): 90 kg. |
Package: 77 × 89 × 9 cm. |
