Ophthalmic Refraction Unit Series
Integrated Vision Assessment System

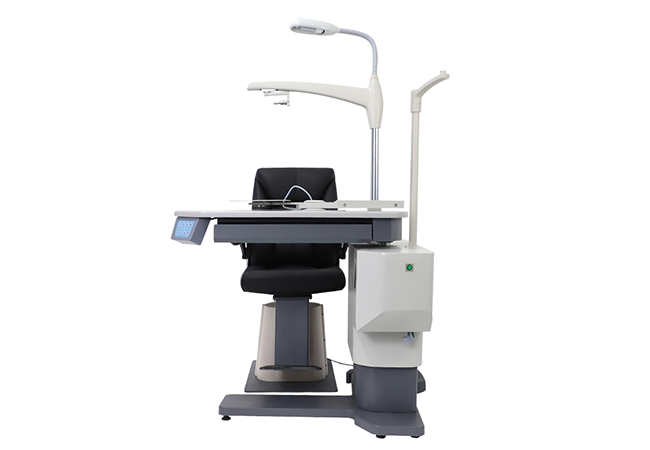

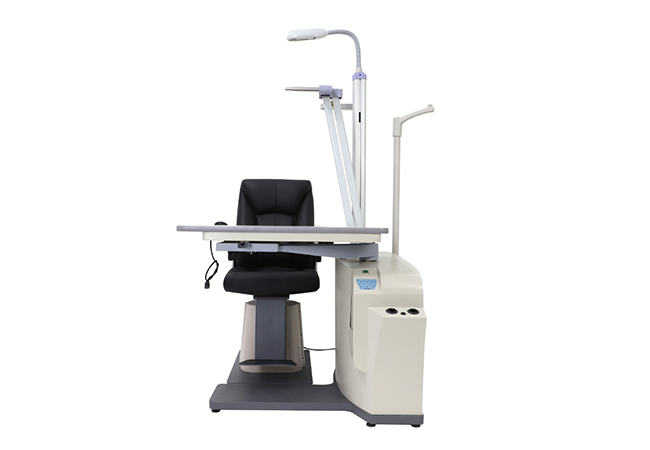

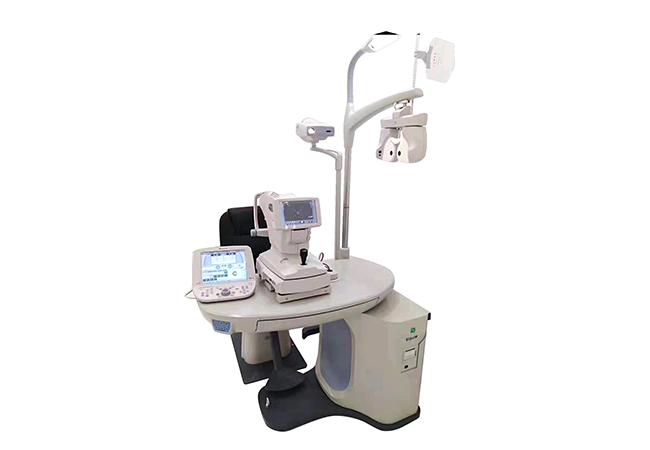

The Ophthalmic Refraction Unit is the central, ergonomic workstation designed to integrate all necessary instruments—including the phoropter, slit lamp, and autorefractor—to ensure precise, comfortable, and highly efficient subjective and objective vision examinations.
Model-Specific Features & Specifications
The following table details the key features and specifications for the Refraction Units shown, highlighting their instrument capacity and specialized functionality:
| Model | Primary Features | Instrument Capacity / Seating | Key Movements & Ergonomics |
|---|---|---|---|
| HD-450S | Uses an ABS hard plastic table material. | Seats three pieces of equipment like auto refractometer, slit lamp, or NCT. | Table rotates 90 degrees, slides left/right, and rotates freely. Seat has rotation, aerodynamic reclining, movement, and electric lifting. |
| HD-3200 | Features an Auto motorized swiveling phoropter arm. | Seats two pieces of equipment (e.g., auto refractometer, retinal camera, slit lamp) on a larger tabletop. | Auto motorized phoropter arm. Manual linear phoropter arm. |
| Titan | Sliding holder for seamless instrument changes. | Accommodates either an auto refractometer or a slit lamp. | Sliding holder movement. Manually linear phoropter arm. |
| Hulk | Features a swiveling supporting bracket. | Accommodates an auto refractometer. | Swiveling supporting bracket. Automated linear phoropter arm. Includes a trial lens drawer in front of the tabletop. |
| HD-700A | Features a reclining bar control. | Accommodates instruments on a table. | Recline bar control for a maximum angle of 90 degrees. Manual linear phoropter arm. One chair lock allows for max 360 degrees rotation. Fully rotary and counterbalanced slit lamp arm. |
| HD-700C | Phoropter arm is auto elevation. | Accommodates an auto refractometer and a phoropter keyboard. | Swiveling equipment holder. Auto elevation linear phoropter arm. Tabletop can elevate and rotate. |
| HD-120 | Designed as a working station. | Accommodates ophthalmic diagnostic and examination instruments. | Dedicated working station with charging dock for hand-held ophthalmoscope and retinoscope. |
