Ophthalmic Doctor Stool Series

Ergonomic Clinical Seating System

The Ophthalmic Doctor Stool is the foundation of the examination lane, providing stable, comfortable, and dynamically adjustable seating essential for the precise positioning and ergonomic support of the practitioner during detailed diagnostic procedures worldwide.

Model-Specific Features & Specifications

The following table details the key technical specifications and features for the Ophthalmic Doctor Stool models shown, categorized by their primary features and back support.

Model	Seat / Back Features	Adjustability (Retracted – Extended)	Weight Capacity & Lift	Caster & Base Details

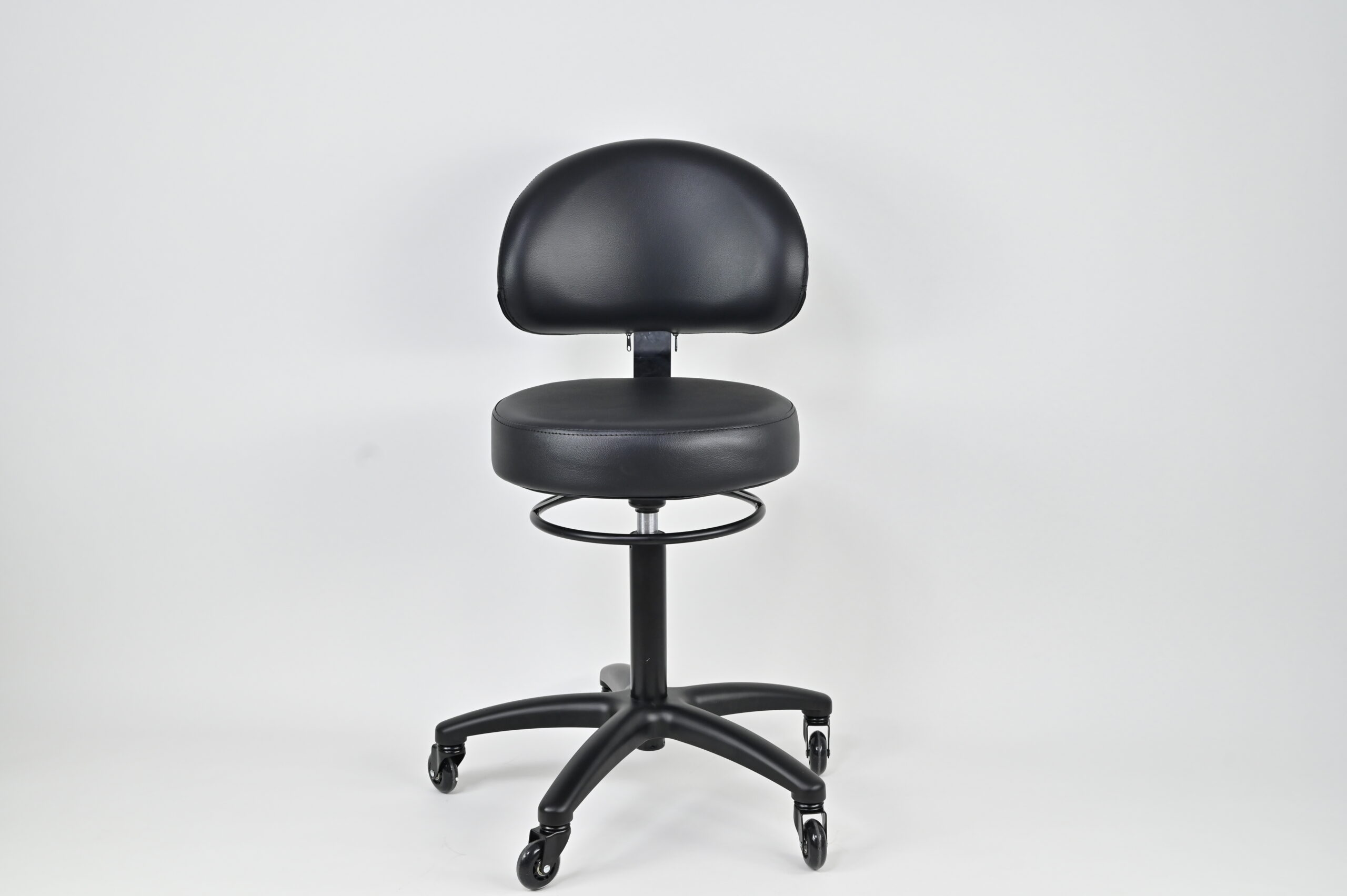

Stools with Back Support
HD-300	Seat: 43.5 × 36.5 cm (17.1" × 14.3") Back: 42 × 22 cm (16.5" × 8.7") Headrest adjustable; Leather upholstery	Height: 51 cm – 70.5 cm (20.9" – 28.1") Back Adj: 15 cm (5") range	Capacity: 150 kg (330 lbs) Stroke: 18.5 cm (7.3")	Caster: PU, Black Base/Cylinder: Black/Chrome
HS-500	Seat: 40 × 41.5 cm (15.7" × 16.3") Back: 39 × 25 cm (15.3" × 9.8")	Height: 53 cm – 75.5 cm (20.8" – 29.7") Back Adj: 13 cm (5") range	Capacity: 150 kg (330 lbs) Stroke: 18.5 cm (7.3")	Caster: Black (Self-locking) Base/Cylinder: Black/Chrome
HS-600pro	Seat: 40 × 40 cm (15.7" × 15.7") Back: 42 × 22 cm (16.5" × 8.7") Foam Thickness: 9 cm (3.5")	Height: 51 cm – 75.5 cm (20.4" – 29.7") Back Adj: 15 cm (5") range	Capacity: 150 kg (330 lbs) Stroke: 18.5 cm (7.3")	Caster: Grey Base/Cylinder: Chrome/Chrome
HS-700	Seat: 40 × 40 cm (15.7" × 15.7") Back: 40 × 24 cm (15.7" × 9.4") Foam Thickness: 9 cm (3.5")	Height: 51 cm – 75.5 cm (20.4" – 29.7") Back Adj: 10 cm (3.9") range	Capacity: 150 kg (330 lbs) Stroke: 18.5 cm (7.3")	Caster: Black Base/Cylinder: Chrome/Chrome
HS-150	Seat: 46 × 38 cm (18" × 15") Back: 46 × 23 cm (18" × 9") Foam Thickness: 8 cm (3")	Height: 57 cm – 75.5 cm (22.4" – 29.7") Back Adj: N/A	Capacity: 150 kg (330 lbs) Stroke: 18.5 cm (7.3")	Caster: Black Base/Cylinder: Black/Chrome
HS-200pro	Seat: 40 cm (16") Wide, Round Back: 42 × 22 cm (16.5" × 8.7") Upholstery: Anti-odor-proof leather	Height: 56.5 cm – 75.5 cm (22.2" – 30") Back Adj: 360° Ring	Capacity: 330 lbs Stroke: 18.5 cm (7.25")	Caster: 2.5" Block Base: 5-star alloy (600 mm)
HS-100pro	Seat: 38 cm (15") Wide, Round Back: 42 × 22 cm (16.5" × 8.7") Foam Thickness: 9 cm (3.5")	Height: 55.5 cm – 75.5 cm (21.9" – 29.7") Back Adj: 360° Ring	Capacity: 330 lbs Stroke: 18.5 cm (7.25")	Caster: 2.5" Block Base: 5-star alloy (600 mm)
HS-400	Seat: 36 × 42 cm (14" × 16.5") Back: 50 × 25 cm (19.7" × 9.8") Foam Thickness: 7 cm (2.8")	Height: 52 cm – 71.5 cm (20.9" – 28.1") Back Adj: 0 (None)	Capacity: 100 kg (220 lbs) Stroke: 18.5 cm (7.3")	Caster: PU, Black Base/Cylinder: Black/Chrome

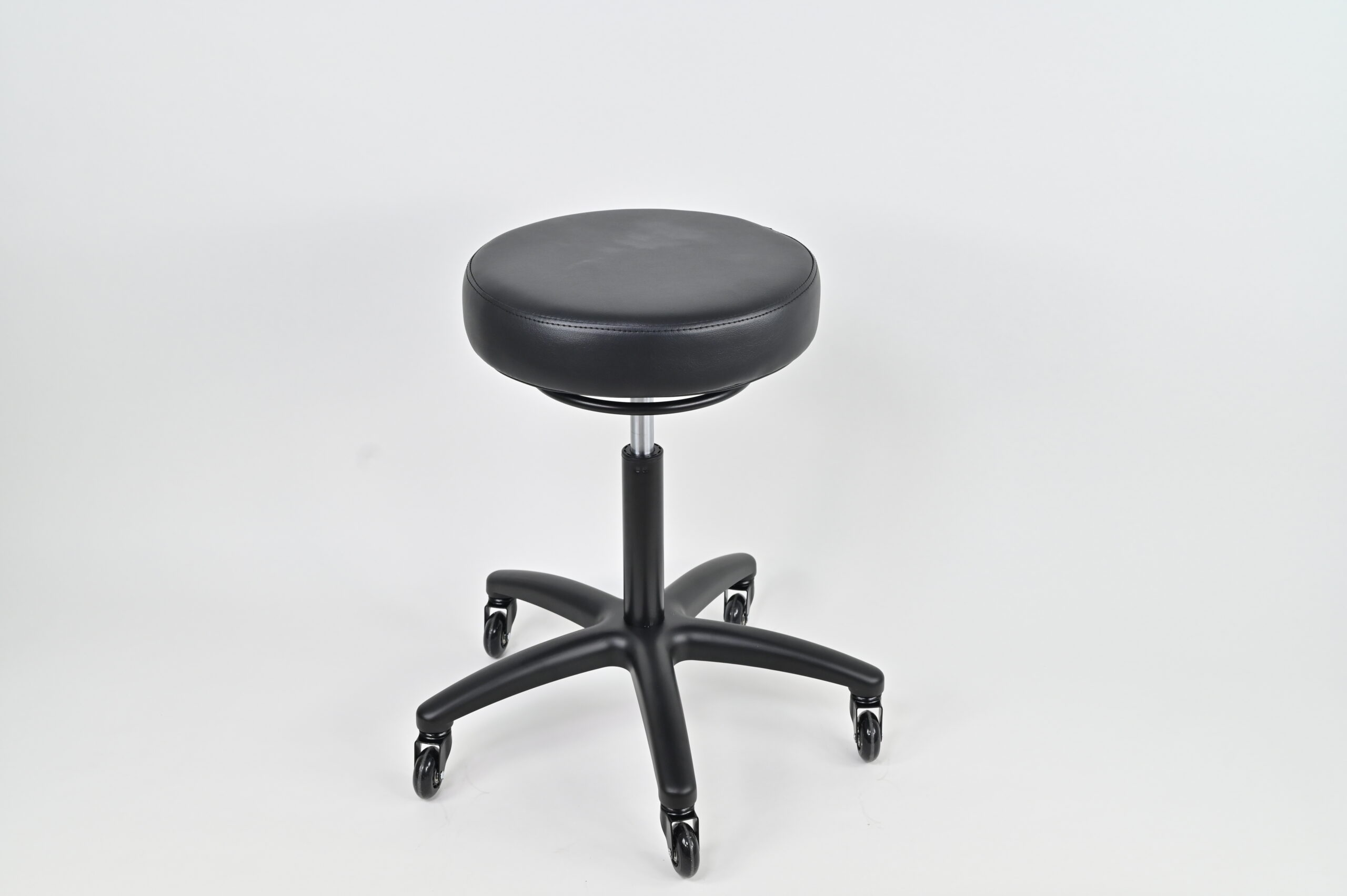

Stools without Back Support (Ring/Lever Adjustment)
HS-100	Seat: 36 cm (14.2") Wide, Round Back: N/A Foam Thickness: 8 cm (3")	Height: 53 cm – 75.5 cm (20.9" – 29.7") Adj Range: 53 cm – 71.5 cm	Capacity: 150 kg (330 lbs) Stroke: 18.5 cm (7.3")	Caster: PU, Black Base/Cylinder: Black/Black
