Ophthalmic Motorized Table Series

Instrument Support System

The Ophthalmic Motorized Table series provides stable, effortless, height-adjustable support for diagnostic instruments, ensuring optimal patient accessibility, examination ergonomics, and clinical workflow efficiency for every specialized need worldwide.

Model-Specific Features & Specifications

Below are the key features and specifications for the various models in the Ophthalmic Motorized Table range, designed to meet diverse clinical requirements:

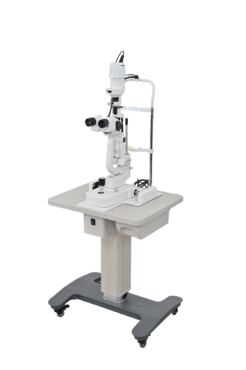

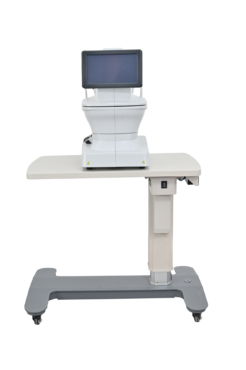

1. Standard Single Instrument Tables

Model Tabletop Size Key Features
HD-18AE 400 mm × 480 mm 1. Seats slit lamp, auto refractometer, lensmeter.
2. Metal base and casters.
3. One power outlet.
4. Without drawer.
HD-18A 450 mm × 555 mm 1. Seats slit lamp, auto refractometer, lensmeter.
2. Metal base and casters.
3. One power outlet.
4. With one drawer.
HD-18T 610 mm × 530 mm 1. Seats slit lamp, auto refractometer, NCT.
2. Metal base and casters.
3. Two power outlets.
4. Two drawers.
HD-18B 750 mm × 480 mm 1. Metal base and casters.
2. 2 outlets for safety.
3. Elegant and streamlined design.
4. Use domestic actuators.
Jack C 550 mm × 480 mm 1. Designed to accommodate a set of ophthalmic diagnostic equipment (slit lamp, retina camera, or OCT).
2. Adjustable height ranging from 680 mm - 880 mm.
Jack Pro 480 mm × 500 mm 1. Medical grade plugs, fire-proof, and UV-coated plastic cover.
2. Plus fixation bracket plus the 4 sets of fuses to guarantee electrical safety.
3. Two pcs fixation bolt underneath two legs to offer more stability.

2. Specialized & Dual-Instrument Tables

Model Tabletop Size Key Features
HD-18C 900 mm × 450 mm / 1000 mm × 550 mm 1. Designed specifically to seat Oculus PentaCam and Corvis.
2. 4 outlets for safety.
3. Imported Linak actuator for high medical use quality.
HD-40 920 mm × 575 mm 1. Durable metal base.
2. Heavy-duty casters with breaks.
3. A Paper holder is available.
4. Seat ophthalmic diagnostic equipment like OCT, slit lamp, and auto perimeter.

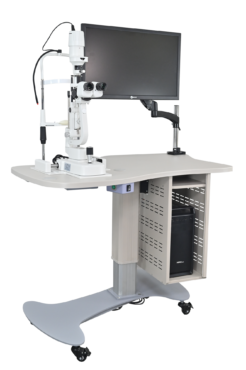

HD-40 (Monitor) 920 mm × 575 mm 1. Durable metal base.
2. Heavy-duty casters with breaks.
3. A Paper holder is available.
4. Computer holder is available.
5. Seat ophthalmic diagnostic equipment like OCT, slit lamp, and auto perimeter.
HD-20 1170 mm × 843 mm / 1180 mm × 710 mm 1. Two different large tabletops: one for auto refractometer, the other for slit lamp.
2. Designed specifically to accommodate two equipment.
3. A computer holder is available.
4. Easily adjustable monitor.
HD-20T 550 mm × 550 mm / 550 mm × 400 mm 1. Mainly seat OCT, like Topcon Maestro, Tomey Casia, Heidelberg optical biometry, and Specular microscope.
2. Up to 8 metal casters to provide high-level safety and stability.
WCT-100 920 mm × 920 mm 1. Designed specifically for the auto perimeter.
2. Metal base guarantees high reliability and durability.
3. A wide distance between legs makes it accessible for the wheelchair.
